Precise And Robust Tilt Sensors
Inclinometers, also called tilt sensors or IMU, are designed to measure the angle of an object with respect to the force of gravity. These tilt or level meters determine the angle orientation in space with gravity as reference and output these values via the appropriate electrical interface. Inclinometers are easy to integrate to an application because there is no need for mechanical linkages other than the installation itself – a real advantage for design engineers. POSITAL’s inclinometer portfolio offers solutions for different industries to tackle all application-specific challenges

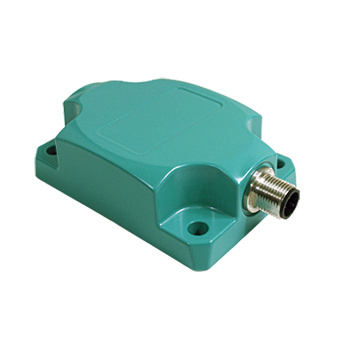

Dynamic Inclinometers
- Integrated Accelerometer & Gyroscope
- Filtering of Accelerations, Shocks & Vibrations
- Communication Interface, CANopen and J1939
- Measurement Range, 1 and 2 Axis, Pitch & Roll
- Accuracy±0.30°, Resolution 0.01°
- Protection Class, IP68K / IP69K

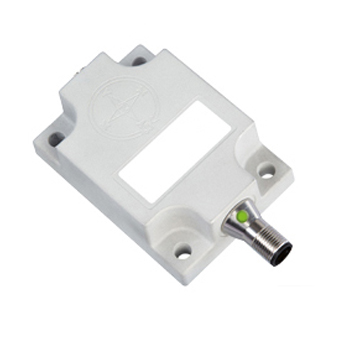

Static Inclinometers
- Vertical & Horizontal Mounting, Teach-In, Preset and Scaling Functions
- Communication Interface, Analog, CANopen, J1939, SSI, Modbus RTU
- Measurement Range, Single axis 90 °~ 360 °, dual axis ± 10 °~ ± 90 °, pitch and roll ± 85 °/± 180 °
- Accuracy ±0.10°, Resolution 0.01°
- Protection Class, IP67K / IP68K / IP69K

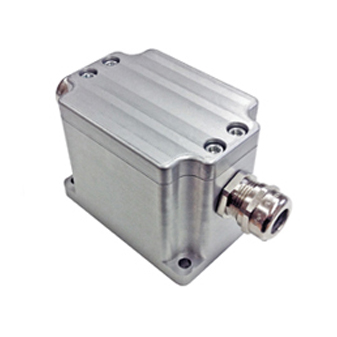

ATEX Inclinometers
- IECEx & ATEX Versions Available
- Meets Mining, Oil and Gas requirements
- Accuracy ±0.10°, Resolution 0.01°
- Easy and Fast Mounting
Applications:
Dynamic inclinometers output a clean measurement signal that can be used reliably on mobile equipment such as cranes, construction, mining, agricultural machinery and other applications where sudden movements, shocks and vibrations are likely to be encountered.
Static inclinometers can significantly improve operating safety in mobile machines, platform leveling or medical applications by continuously monitoring the tilt or inclination angles.
Inclinometers are much easier to install and thus less expensive compared to rotary encoders, making them ideal for applications such as solar trackers, scissor lift tables, and aerial work platforms.
