The product has the characteristics of rigidity, toughness, wear resistance, and low meshing noise, The output planetary carrier of the reducer adopts an integrated nut design to eliminate axial clearance. Integrated structure, with large span distribution of front and rear tapered roller bearings and integrated box body, To ensure improved torsional rigidity and super strong radial and axial bearing capacity, Heavy series four cone, large-span tapered roller bearings arranged and output integrated planetary structure. The product has high rigidity, high precision, frequent start stop and load change applications, Outstanding performance in diverse output scenarios.
Products | Reduction ratio | Maximum gear backlash | Maximum bearing torque |

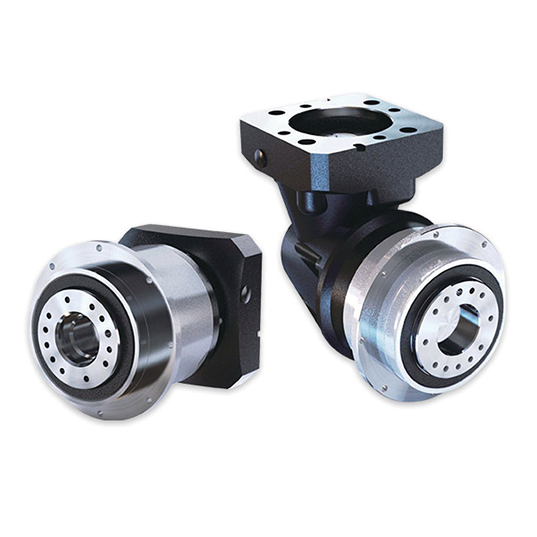

AB/ABR More precise and high rigidity | 3:1~10000:1 | 3 arcmin | 6000N.m |
AF/AFR More precise and sturdy | 3:1~10000:1 | 3 arcmin | 6000N.m |

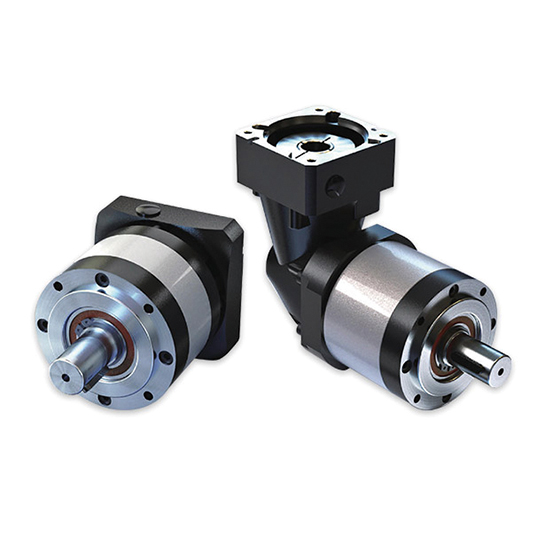

PL/WPL Precise and economical | 3:1~10000:1 | 8 arcmin | 65000N.m |
AD/ADR More precise and sturdy | 3:1~10000:1 | 3 arcmin | 4700N.m |
IB/IBR Precision and rigidity | 3:1~10000:1 | 6 arcmin | 2950N.m |
PS/WPS Precise and economical | 3:1~10000:1 | 8 arcmin | 65000N.m |
AE/AER More precise and high rigidity | 3:1~10000:1 | 3 arcmin | 6000N.m |
PW Type structure, more applications | 1:1~500:1 | 6 arcmin | 3200N.m |
PF/WPF Precise and economical | 3:1~10000:1 | 8 arcmin | 65000N.m |
