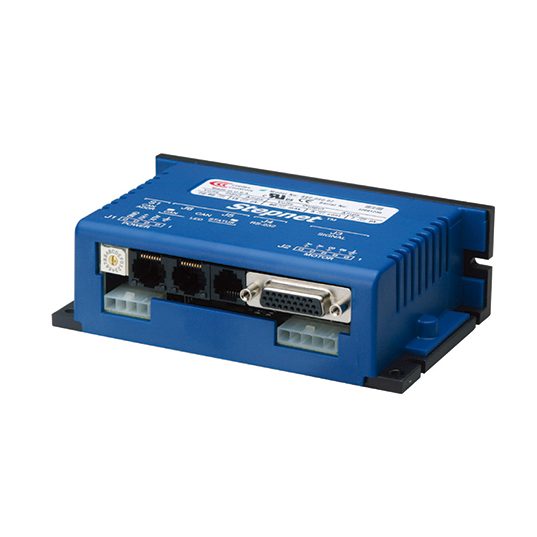

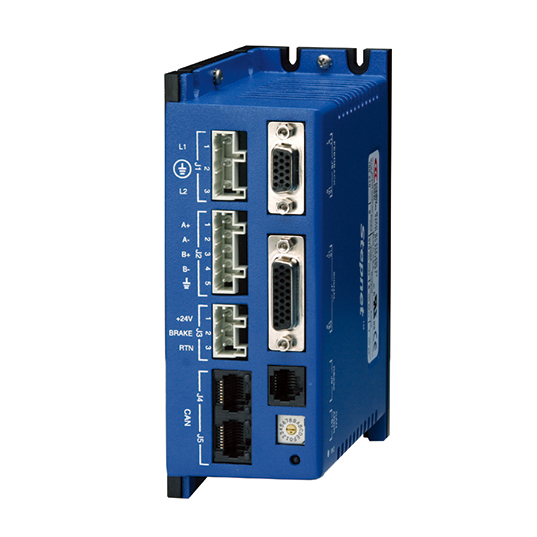

Stepnet Stepper Panel Drive
Product model and parameter
Product Series | Stepnet STX | Stepnet STP |
Dimensions | 146 x 119 x 55 mm | 136 x 84 x 42 mm |
Supply Voltage | 100-120 / 100-240 VAC | 20-75 VAC |
Continuous Current | 5 A | 5 / 10 A |
Peak Current | 7 A | 7 / 10 A |
Communications | CANopen, RS-232 | |
I/O - Digital | 9-14 inputs, 3-4 outputs | |
Control Modes
- Indexer, Point-to-Point, PVT
- Camming, Gearing, Position, Velocity, Torque
Command Interface
- CANopen
- ASCII, Serial Binary and discrete I/O
- Stepper commands
- ±10 V Position/Velocity/Torque
- PWM Velocity/Torque command
- Master encoder (Gearing/Camming)
Feedback
- Digital quad A/B encoder
- Digital Halls
- Aux. encoder / encoder out
- Analog Sin/Cos encoder (-S option)
- Dual loop feedback
