Hollow Shaft Absolute Rotary Encoder
The VLX encoders are state-of-the-art position sensors designed for a broad range of industrial automation applications and motion control, with exceptional performance to size ratio. Typical applications include highly accurate surgical robots, semi-conductor robotics, collaborative-robots, multi-axes automated machinery, as well as automotive applications. Tested to meet the most exact of industrial environmental conditions of IEC 60068-2 and feature an ‘on-the-application’ push-button automatic calibration process.

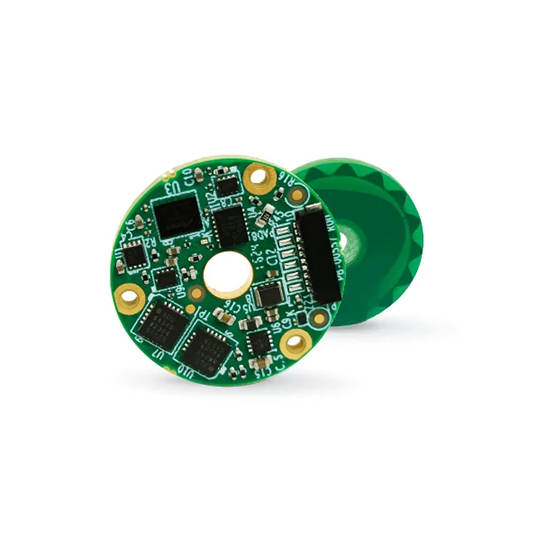

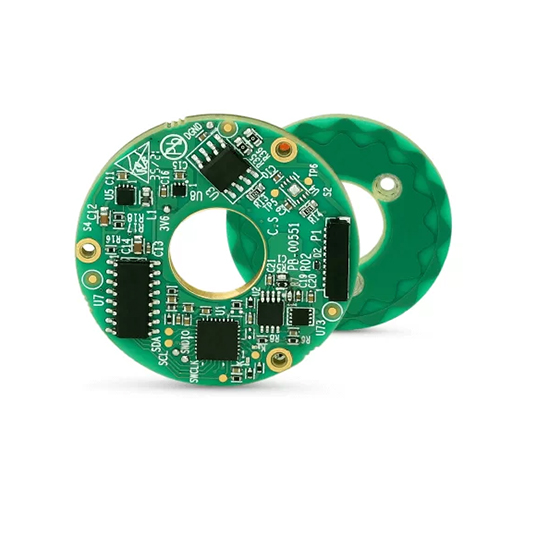

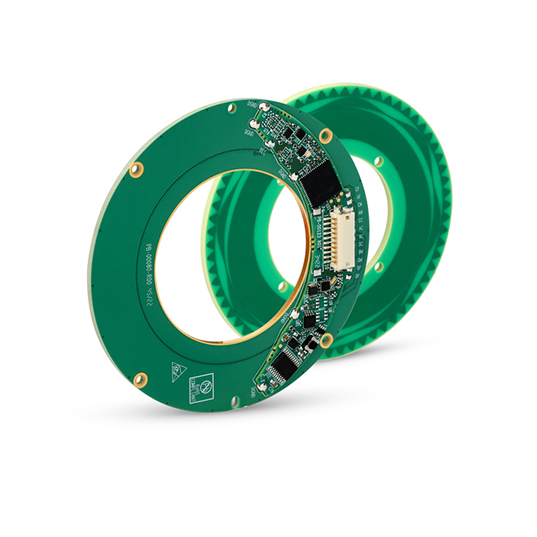

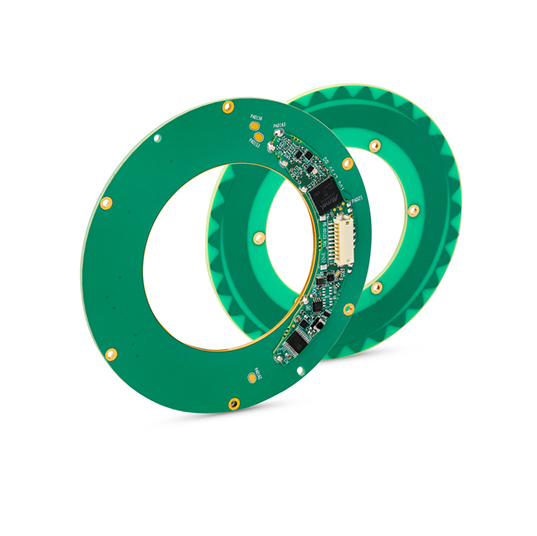

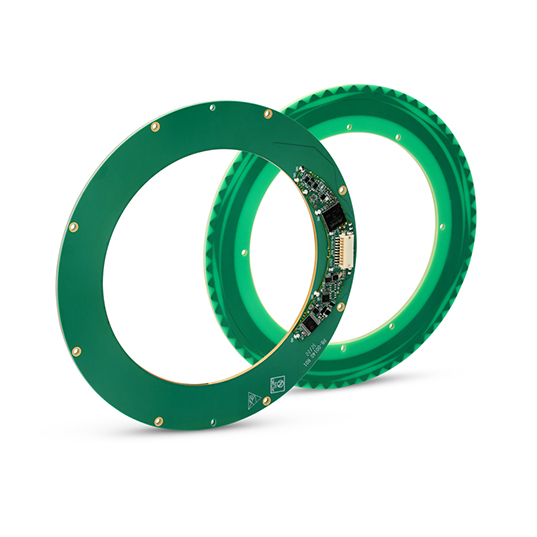

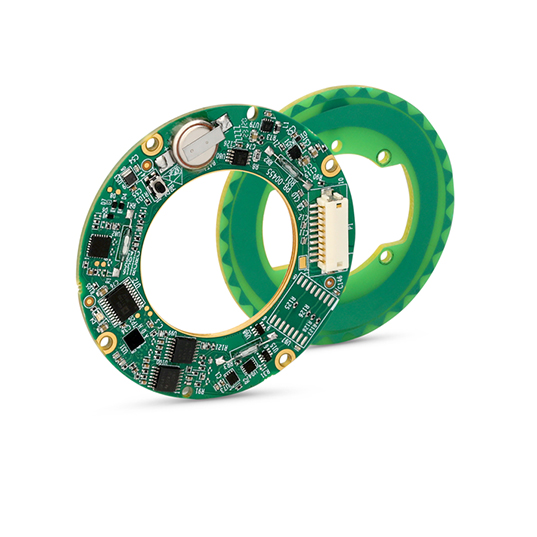

Product | OD/ID/Height | weight | Resolution | Accuracy | Max. operational speed |
VLX-25 | 25/2.2/6.3 mm | 3.6 g | 17-19 bit | ±0.035° | 6000 rpm |
VLX-35 | 35/11/6 mm | 5.5 g | 17-19 bit | ±0.05° | 6000 rpm |
VLX-60 | 60/25/8 mm | 14 g | 18-20 bit | ±0.015° / ±0.010° | 4000 rpm |
VLX-80 | 80/35/9.6 mm | 33 g | 19-21 bit | ±0.010° / ±0.006° | 2000 rpm |
VLX-100 | 100/48/9 mm | 40 g | 18-20 bit | ±0.010° / ±0.006° | 4000 rpm |
VLX-140 | 140/90/10 mm | 72 g | 19-21 bit | ±0.010° / ±0.006° | 2000 rpm |
VLX-170 | 170/110/10 mm | 106 g | 19-21 bit | ±0.010° / ±0.006° | 2000 rpm |
VLX-247 | 247/171/10.7 mm | 220 g | 18-20 bit | ±0.010° / 0.006° | 4000 rpm |
VLM-60 | 60/25/8 mm | 15 g | 17 bit | ±0.010° | 4000 rpm |
Electrical
Supply voltage: 5V ±5%
Current consumption: ~90 mA
Communication: SSi / BiSS-C
Clock frequency: 0.1- 5.0 MHz
Material (stator / rotor): FR4
Environmental
EMC: IEC 6100-6-2, IEC 6100-6-4
Operating temperature: -40°C to +85°C
Storage temperature: -40°C to +85°C
Relative humidity: 98% Non condensing
Shock endurance / functional: 100g 6msec saw-tooth per IEC 60068-2-27:2009
Vibration functional: 20g @ 10 to 2000 Hz sweep per IEC 60068-2-6
Protection: IP 40
