Inductive Angle Encoders

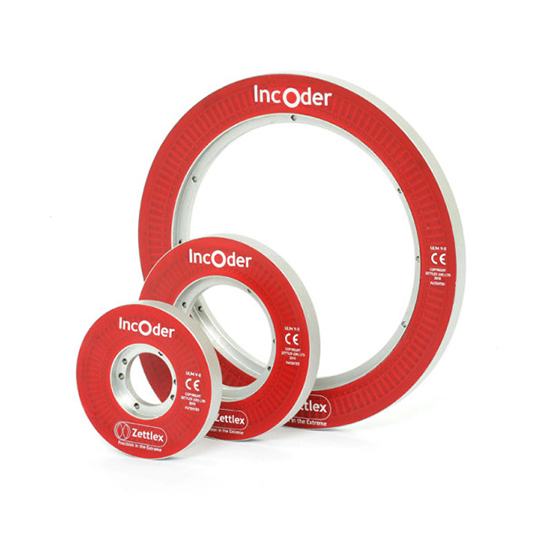

Ultra IncOders are non-contact, inductive devices for precision angle measurement in tough conditions. Each unit is pre-calibrated and offering up to <19 arc-seconds accuracy and 22-bits resolution. Ultra IncOders offer simple installation, and the low profile and the large bore make it easy to accommodate through-shafts, slip-rings, pipes or cables.
- Non-contact technology for high reliability in hash environments
- Pre-calibrated for high accuracy angle measurement
- Available in sizes 75-300mm
- Simple installation – ‘Fit and Forget’ technology
- Proven in Satcom, UAV & Industrial applications

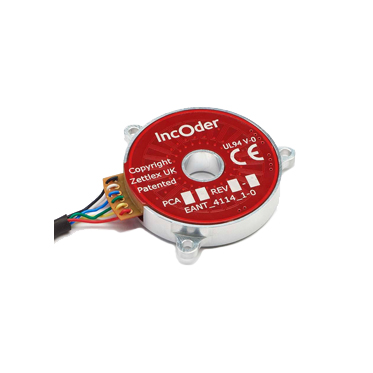

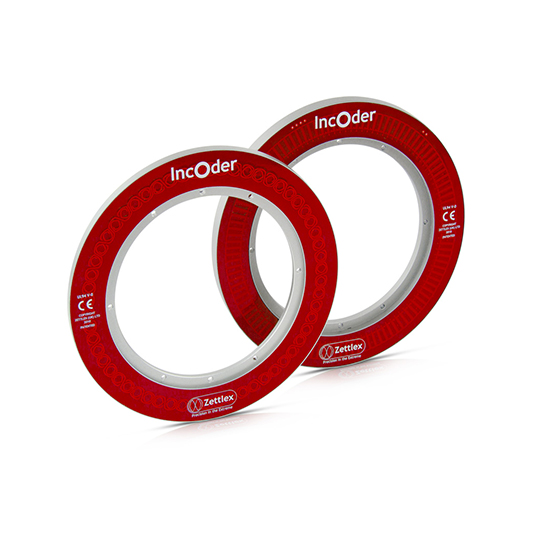

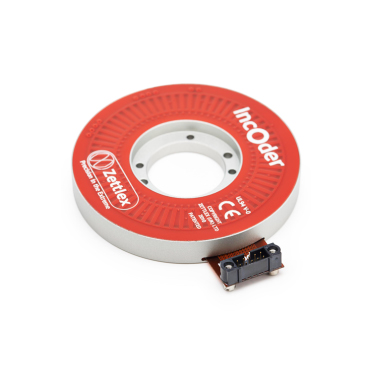

Products | Mini Ultra IncOder | Midi Ultra IncOder |
Size (OD) | 37, 58 mm | 75 - 300 mm |
Size (ID) | 5 - 12.7 mm | 25 - 260 mm |
Accuracy | ≤75 arc-seconds (depending on size) | ≤19 arc-seconds (depending on size) |
Resolution | up to 20 bits | up to 22 bits |
Operating Temperature | -60°C to 105°C | |
communication | ASI, SSI, SPI, BiSS-C, A/B/Z pulses | |
Connection | Axial, radial & integral cable | |
Voltage | 5V, 12V, 24V | |
IP rating | IP67 possible | |
