IAM- Unencapsulated Kit Magnetic Encoder

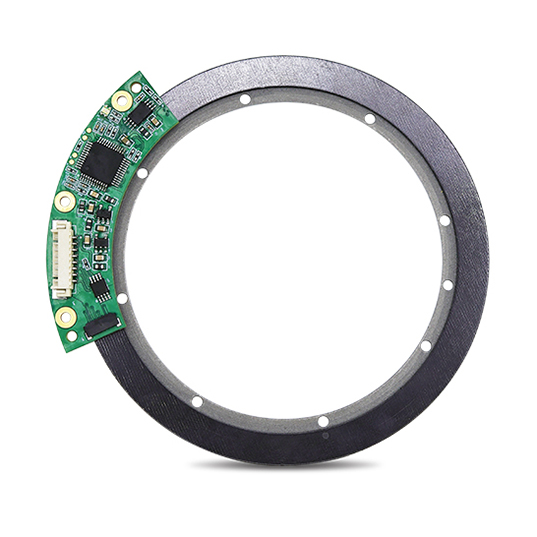

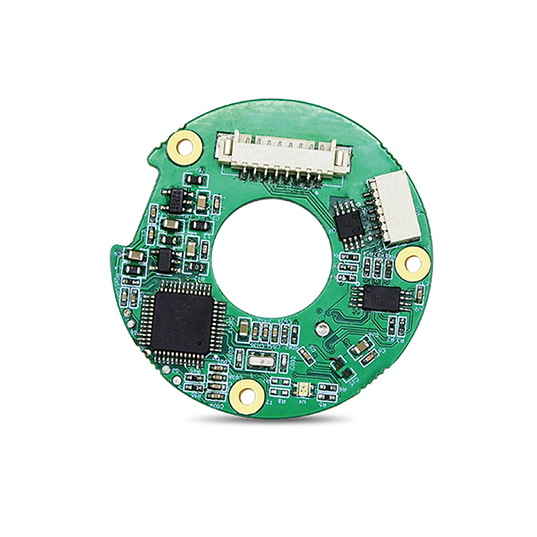

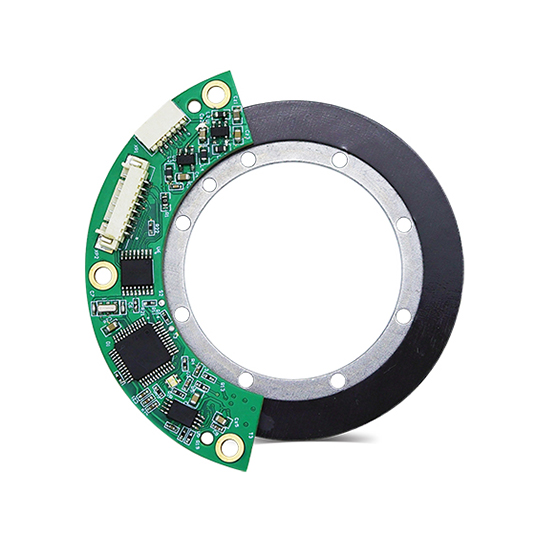

IAM series are non-contact high-performance absolute magnetic rotary encoders, using hall magnetic sensing units and magnetic rings to complete angle detection. The product is compact and can be integrated into applications with limited space. At the same time, the characteristics of hollow shaft, absolute position and high-speed operation make it suitable for more applications.
The IAM series magnetic encoders are available with BiSS-C, Asynchronous serial (UART), SPI, ABZ or SSI communication interfaces and offer a range of binary resolutions up to 20 bits per revolution. The working temperature is from -30 ℃ to +85 ℃.
The IAM series magnetic encoders have a built-in advanced self-monitoring function, which can provide functional feedback through the onboard LED indicator, making it convenient for installation and use.
The IAM series magnetic encoders can be used both for position feedback and for optimizing the commutation of the frameless motor, it is very suitable for systems with limited space, such as robot joints, universal joints, and agricultural automation.
Product | OD/ID/Height （mm） | Weight （g） | Resolution （bit） | Accuracy | Max. operational speed （rpm） |
IAM-22 | A：28.5\6\7.6 B：32\6\7.6 | 8 | 17-18 | 0.1° | 6000 |
IAM-29 | A：38\10\8 B：38\15\8 | 11 | 17-18 | 0.1° | 6000 |
IAM-39 | 54\20\8 | 15 | 17-19 | 0.1° | 6000 |
IAM-49 | 59\25\8 | 18 | 17-19 | 0.1° | 6000 |
IAM-55 | 67/35/8.6 | 22 | 17-20 | 0.1° | 3000 |
IAM-64 | 75/45/8.6 | 25 | 17-20 | 0.1° | 3000 |
IAM-84 | 96/65/8.6 | 30 | 17-20 | 0.1° | 3000 |
Supply voltage: 5-30V
Electrical interface: RS-422 Shielded cable
Communication: SSi、BiSS-C、UART、SPI、ABZ
Operating temperature: -30ºC - +85ºC
