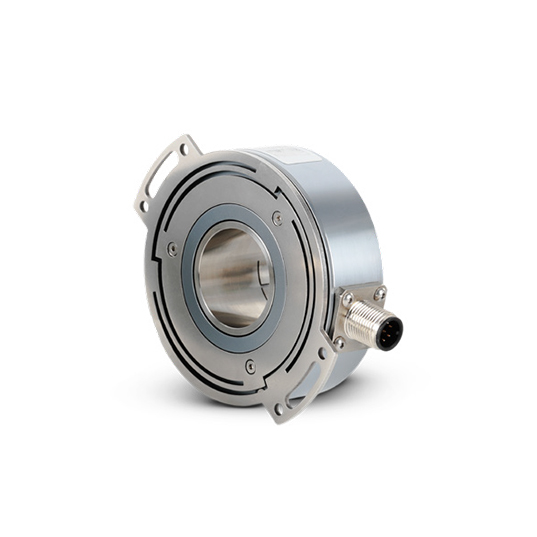

Absolute Encoder
- Provide single turn and multi turn absolute value encoders
- Hollow through shaft, hollow blind hole shaft, solid shaft available for selection
- Axis diameter ф 6mm - ф 40mm
- Single turn up to 32 bits, multi turn up to 24 bits
- Protection class up to IP65
- Supports a wide range of standard communication protocols such as Biss-C/SSI/RS485/parallel/Gray code/binary, etc.
Sincos Encoder
- Provide solid and hollow shaft series
- Axis diameter ф 6mm - ф 30mm
- Pulse 1024-2048 ppr
- Protection class up to IP65
- Sine cosine encoder is used to measure position changes, measurable distance and direction, and is widely used in feedback systems

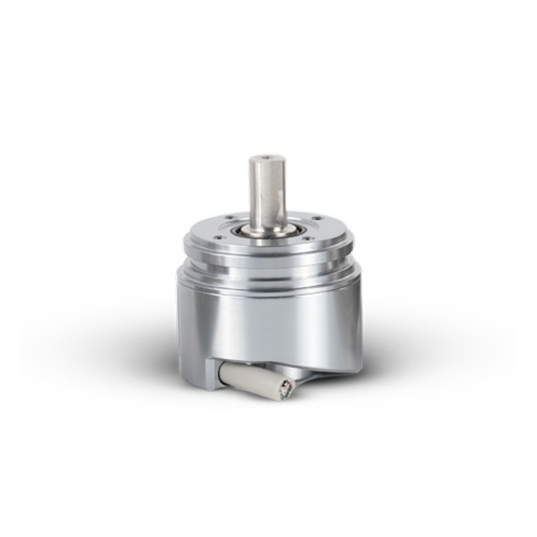

Incremental Encoder High-protection IP67
- Provide high sealing encoders
- Axis diameter ф 6mm - ф 30mm
- Pulse up to 63536 ppr
- Protection class up to IP67
- Used in harsh industrial application environments where there is a large amount of moisture, corrosive agents, or corrosive agents present

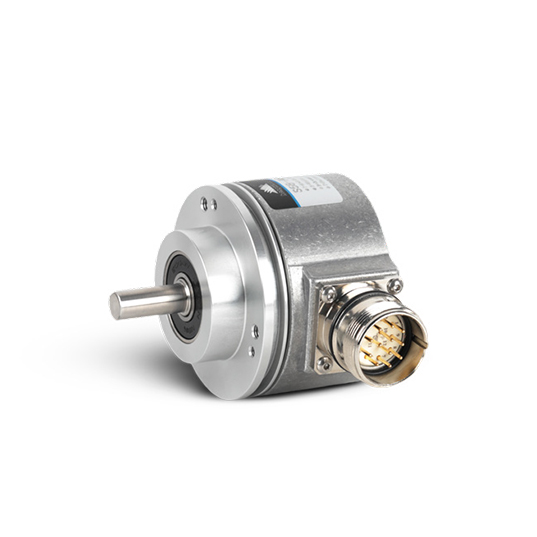

Incremental Encoder Solid shaft
- The solid shaft series encoder providing precise position and velocity feedback
- Optical inductive sensing
- Outer diameter from 9.5 mm to 70 mm
- Axis diameter ф 2.5mm - ф 15mm
- Pulses up to 65536 ppr
- Supports multiple signal outputs including NPN/PNP/voltage/push-pull/HTL/TTL/RS422

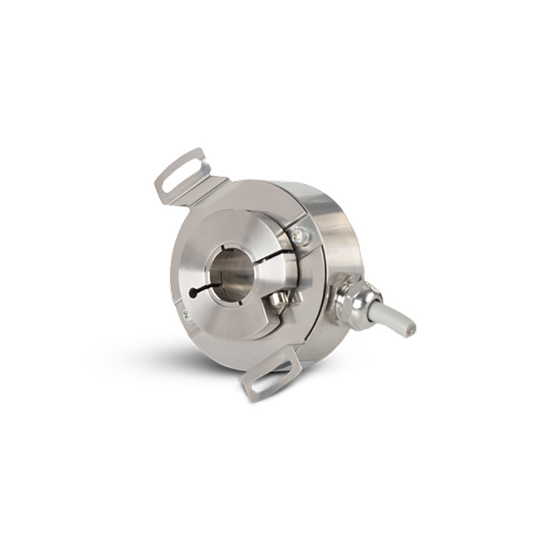

Incremental Encoder Hollow shaft
- Hollow shaft series encoder providing precise position and speed feedback
- Optical sensing
- Outer diameter from ф 18mm to ф 158mm
- Hollow shaft diameter ф 2.5mm - ф 82mm
- Pulse up to 16777216 ppr
- Supports multiple signal outputs including NPN/PNP/voltage/push-pull/HTL/TTL/RS422
