POSITAL kit encoders offer smart, maintenance-free and cost-efficient solutions for the most challenging tasks in real time motion feedback. Fusion of sensing technologies results in unique designs with uninterruptable, battery-free multiturn function, powered by a Wiegand pulse with every rotation. The gear-free, compact and economically optimized concept is ideal for integration into servo, stepper or BLDC motors. No special equipment is required for the installation. There are various mechanical configurations starting from 22 mm outer diameter. Enhanced signal processing software enables high-resolution position measurement with excellent latency compensation.

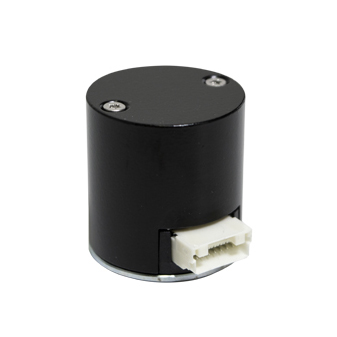

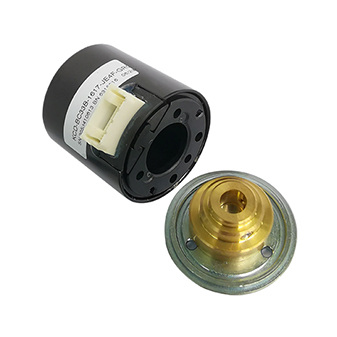

KIT 22
- External Diameter 22 mm
- Hub Shaft ø 2, 3, 4 mm
- Multiturn16 bit (65536 rev)
- Up to 33 bits Resolution
- BiSS-C、BiSS-Line、SSI

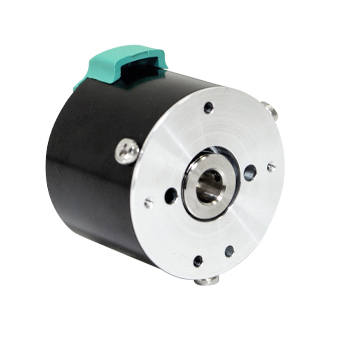

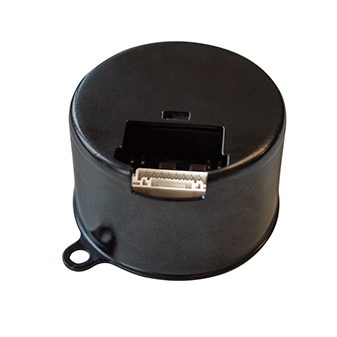

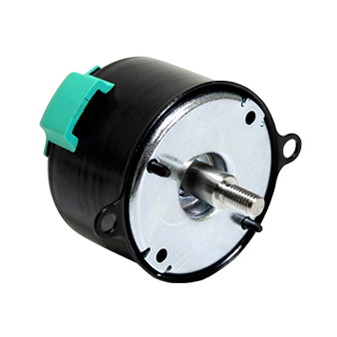

KIT 36
- External Diameter 36 mm
- Shaft ø 4 mm, M4
- Multiturn16 bit (65536 rev)
- Absolute Singleturn Resolution 17/18/19 bit (Magnetic, up to 0.0007°)
- BiSS-C、BiSS-Line、SSI
Applications：AGV – Autonomous Guided Vehicle、Linear Actuator、Stepper / Servo Motor
