Incremental encoders offer reliable speed and distance feedback while keeping the system simple and cost-effective. As a leading manufacturer of rotary encoders, we offer a wide range of incremental encoders with different output signals (HTL, TTL) and mounting options (shaft, thru-bore, and blind hollow bore). PPR, resolution, number of turns and direction are some of the parameters that can be programmed via our configuration tool. All POSITAL magnetic encoders make use of TMR (tunnel magneto-resistance) sensing technology which makes them less temperature sensitive and more energy-efficient.
Accuracy: ≤ 0.02 ° (optical), ≤ 0.09 ° (magnetic)
Certificates: CE/UL, ATEX
Electrical Interface: programmable HTL/TTL (default push-pull HTL, RS422 TTL); Non programmable (push-pull HTL, RS422 TTL)
Output signals: A,/A, B,/B; A, B, Z; A, B, Z,/A,/B,/Z
Resolution (PPR): Programmable (1-16384), non programmable (360, 512, 1000, 1024, 2000, 2048, 2500)

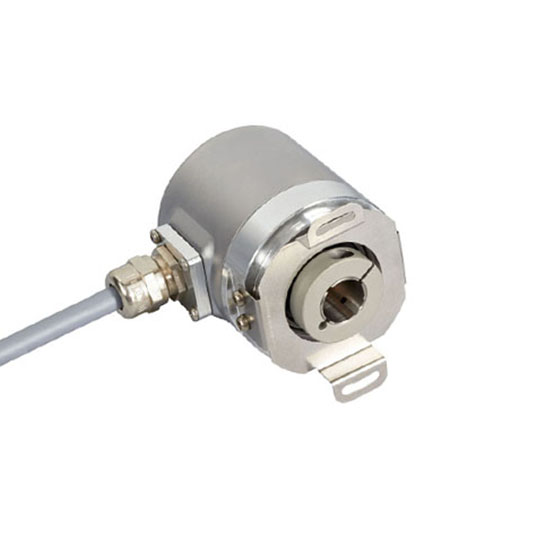

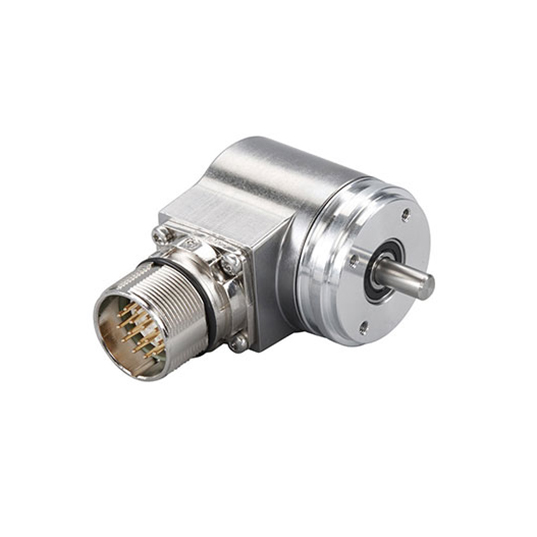

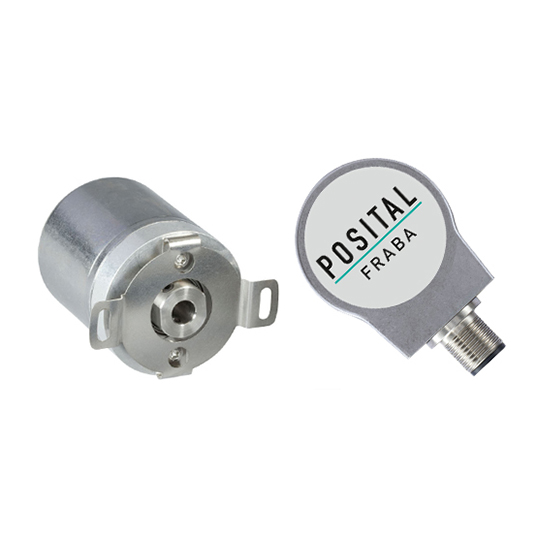

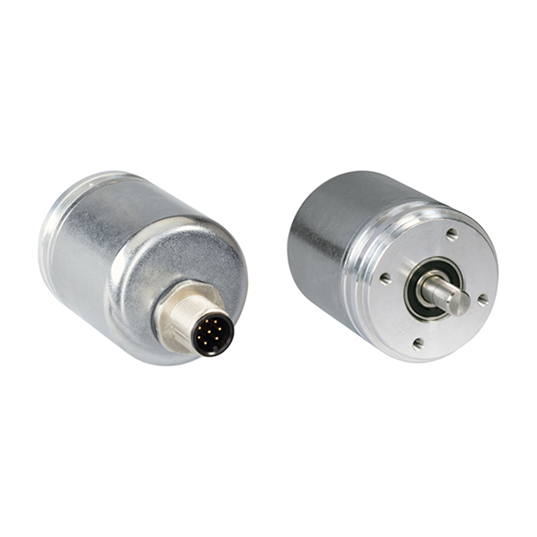

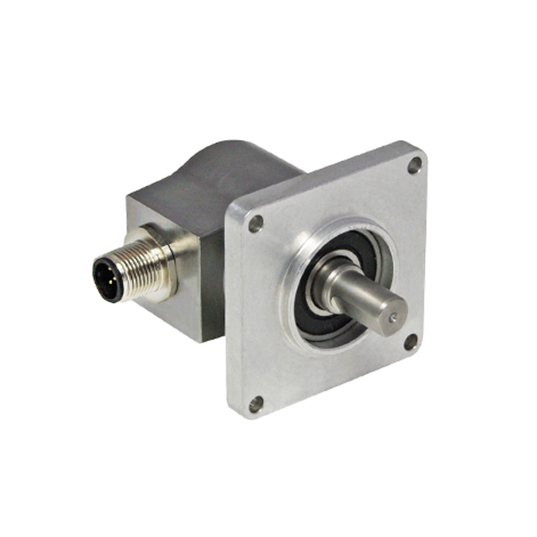

Shaft types: hollow shaft (blind hole type, through-hole type), solid shaft (clamping flange, square flange, synchronous flange)
Material/Protection Level: Aluminum steel (IP54, IP64/IP65), stainless steel V4A (IP67, IP68/IP69)
Cable: Direction (axial, radial, angular), length (1, 2, 5, 10 m)
Applications：Medical Equipment、Mobile Machines、Material Handling、Renewable Energy
POSITAL incremental encoders are ideal for various industries due to their small size and excellent performance. Their economic magnetic design makes them ideal for motor feedback, material handling applications and OEMs.
