SKBIS rotary encoders find their application in electric motors and drives from various manufacturers; miniature and small-sized rotary encoders are widely used in medical equipment and robotics. High-precision encoders are used in radar stations equipment, space communication antennas and unique scientific radio telescopes, and various devices that require high-precision measurements.
Miniature single turn optical absolute rotary encoder
Product | OD (mm) | ID (mm) | Resolution (Bit) | Accuracy | Max. Rotation speed (rpm) |
A119 Solid shaft | 19 | 3/4 | 18 | ±75″ | 10000 |
A219 Hollow shaft | 19 | 3 | 18 | ±75″ | 10000 |
A120 Solid shaft | 20 | 3/4 | 18 | ±75″ | 10000 |
A220 Hollow shaft | 20 | 3/4 | 18 | ±75″ | 10000 |

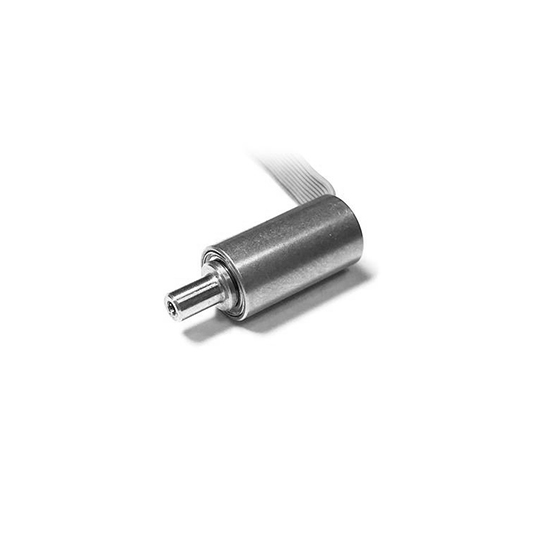

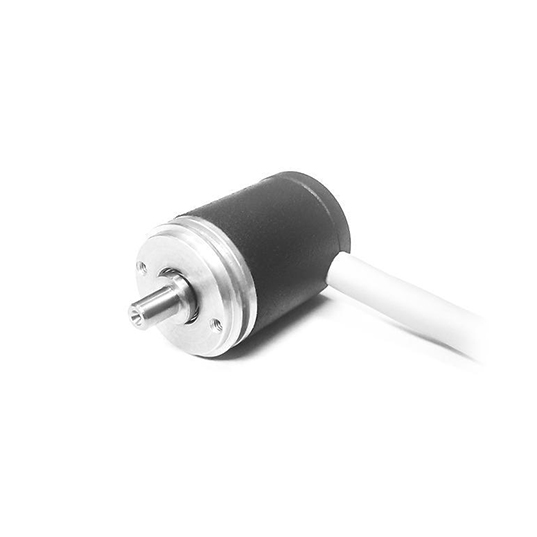

The miniature single turn optical absolute encoder is an updated version with a more complete and reliable component foundation. The housing diameter is 19mm and the shaft diameter is 3mm or 4mm, the resolution is up to 18 bits, with the RS422, SSI and Biss-C interface options, the working temperature is wide from -40 ℃ to+85 ℃, and the protection class reaches IP50. The miniature optical absolute encoder is an ideal choice for the new project, as it is used as a position sensor in robots, medical and laboratory equipment.
Miniature magnetic Absolute rotary encoder
Product | OD (mm) | ID (mm) | Resolution (Bit) | Accuracy | Max. Rotation speed (rpm) |
M108 Split type | 8 | 3 | 12 | ±0.3° | 6000 |
M208 Hollow shaft | 8 | 2 | 12 | ±1.0° | 6000 |
M212 Hollow shaft | 12 | 3 | 11 | ±1.0° | 6000 |

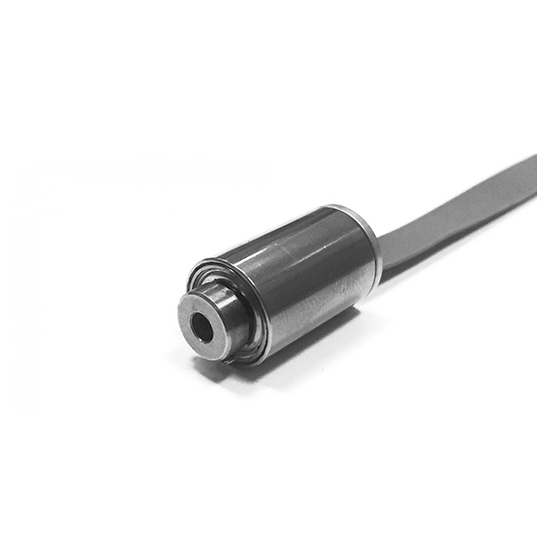

Miniature single turn optical absolute rotary encoder, The series of the smallest absolute rotary encoder! Housing diameter is 8 mm with the shaft diameter 2 mm, the resolution up to 12 bits, supply voltage +5 V, SSI and RS422 interface, operating temperature -40° to +85°, protection class IP50, flat cable for PCB mount, it is used as a position sensor in robotics, medical and laboratory equipment.
High-precision optical Absolute encoder
Product | OD (mm) | ID (mm) | Resolution (Bit) | Accuracy | Max. Rotation speed (rpm) |
A190 Solid shaft | 90 | 10/14 | 24 | ±3.5″ | 4000 |
A390 Hollow shaft | 95 | 20 | 24 | ±3.5″ | 4000 |

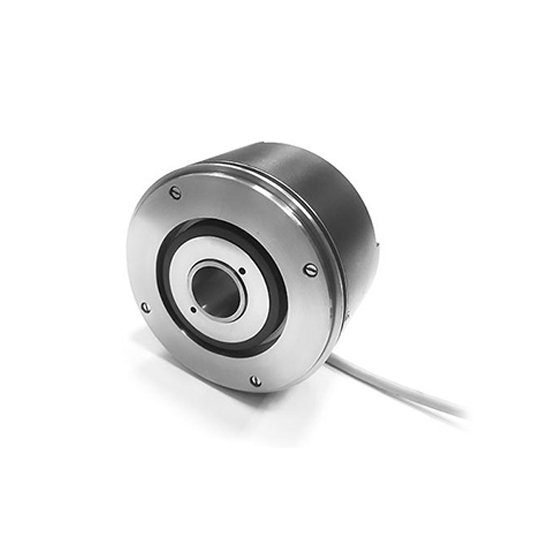

High precision optical absolute encoder is designed for fields with high precision requirements and insufficient resolution for general encoders, such as rotary tables installed on machine tools, radio astronomy, radar, and other equipment with high precision requirements. Resolution up to 24 bits, the accuracy up to 3.5". The interface RS422 and SSI. supply voltage +5 V. Operating temperature -40℃ to +85℃, Protection class up to IP64.
