SKBIS rotary encoders find their application in electric motors and drives from various manufacturers; miniature and small-sized rotary encoders are widely used in medical equipment and robotics. High-precision encoders are used in radar stations equipment, space communication antennas and unique scientific radio telescopes, and various devices that require high-precision measurements.

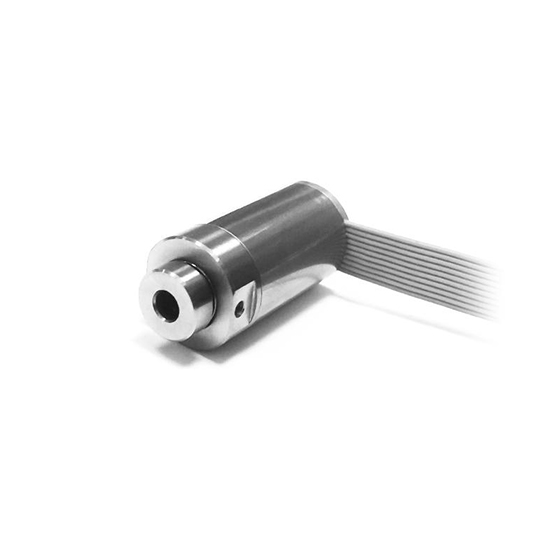

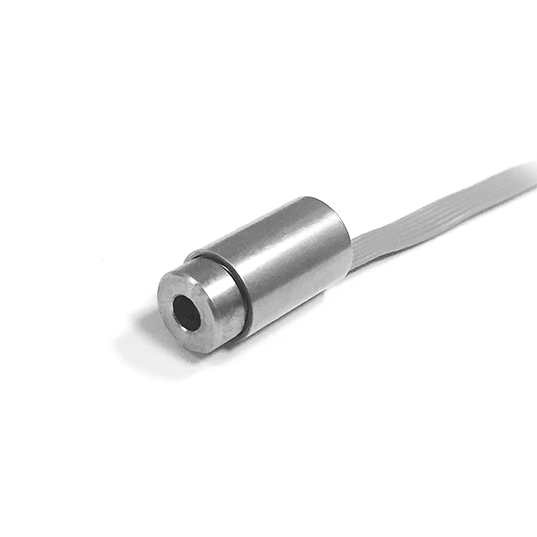

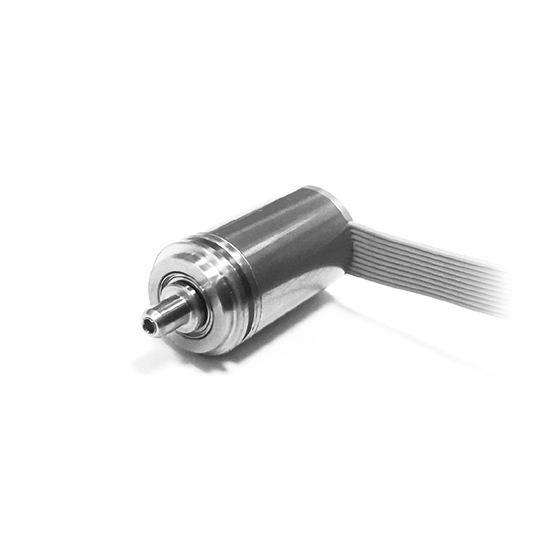

Miniature incremental optical rotary encoder
Product | OD (mm) | ID (mm) | Resolution (CPR) | Accuracy | Max. Rotation speed (rpm) |
R112 Solid shaft | 12 | 3/4 | 32000 | ±150″ | 6000 |
R212 Hollow shaft | 12 | 2/3 | 32000 | ±150″ | 6000 |
R119 Solid shaft | 19 | 3/4 | 115200 | ±75″ | 10000 |
R219 Hollow shaft | 19 | 3/4 | 115200 | ±75″ | 10000 |
Miniature incremental optical rotary encoder, The series of the smallest optical rotary encoder! Housing diameter is 12 mm with the hollow shaft diameter 2 or 3 mm, the resolution up to 32000 counts per revolution, power supply voltage +5 V, out interface TTL, Operating temperature -40℃ to +85℃, Protection class up to IP50. Flat cable for PCB mounting, for used as a position sensor in robotics, medical and laboratory equipment.
Miniature incremental magnetic rotary encoder
Product | OD (mm) | ID (mm) | Resolution (CPR) | Accuracy | Max. Rotation speed (rpm) |
M108 Split type | 8 | 4 | 4096 | ±0.3° | 3000 |
M208 Hollow shaft | 8 | 2 | 4096 | ±0.1° | 6000 |
M212 Hollow shaft | 12 | 3 | 4096 | ±0.1° | 6000 |
Miniature magnetic incremental rotary encoder, The series of the smallest magnetic rotary encoders! Housing diameter is only 8 mm with hollow shaft diameter 2 mm, Weight approximately 10 g, Resolution up to 4096 counts per revolution, power supply voltage +5 V, output signal TTL, Operating temperature -40℃ to +85℃, Protection class up to IP50.

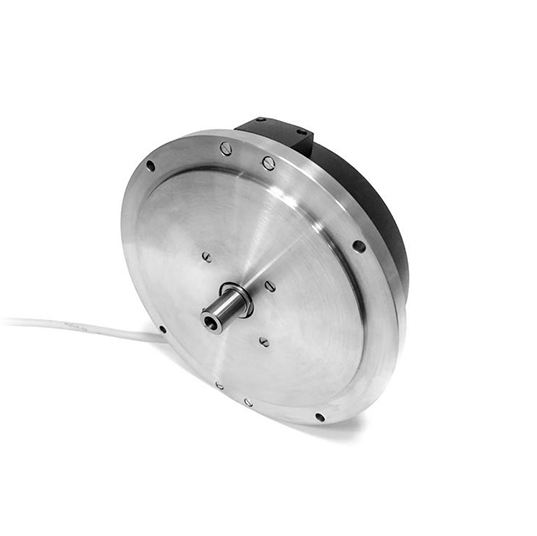

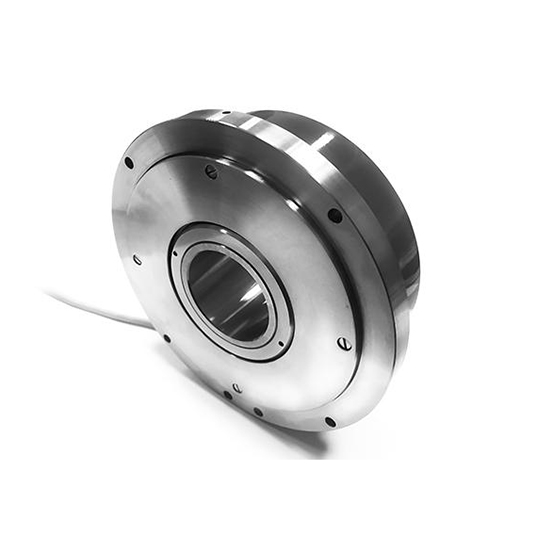

High-precision incremental optical encoder
Product | OD (mm) | ID (mm) | Resolution (CPR) | Accuracy | Max. Rotation speed (rpm) |
R190 Solid shaft | 90 | 10 | 3600000 | ±2.5″ | 4000 |
R390 Hollow shaft | 90 | 20 | 3600000 | ±5″ | 4000 |
R1170 Solid shaft | 170 | 14 | 3600000 | ±1″ | 1000 |
R3170 Hollow shaft | 170 | 50 | 3600000 | ±1.5″ | 1000 |
R3200 Hollow shaft | 200 | 60 | 3600000 | ±1.5″ | 1000 |
High precision incremental optical encoders are designed for fields that require high precision or have insufficient resolution for general encoders, such as rotary tables installed on machine tools, radio astronomy, radar, and other high-precision equipment. With the resolution up to 3600000 per revolution, Precision mechanical structure and optical principles reduce the error of the encoder to 1 arcsecond, 5V power supply voltage, output signal TTL/-1Vpp, working temperature -40 ℃ to+85 ℃, and protection class up to IP64.
