High Power Dense Servo Drive

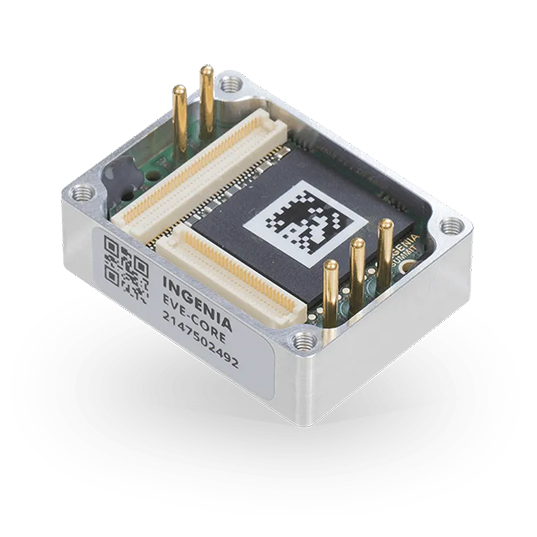

EVE-CORE provides developers with a module that delivers maximum motor control capabilities with the flexibility to manage your own communications and additional features. The drive is commanded through an ultra-fast and safe SPI bus giving you the maximum design flexibility for single axis or multi-axis applications. The EVE-CORE is an excellent solution to control direct drive motors due to its high bandwidth and an ideal companion for robotic axis joints with its dual absolute feedback capability.
EVE-S is a high power density, fully featured servo drive designed for robotic and industrial applications. It includes a cutting edge GAN power stage that provides the highest switching efficiency available. The EVE-S is an excellent solution to control direct drive motors due to its high bandwidth and an ideal companion for robotic axis joints with its dual absolute feedback capability. The EVE-S a multi-communications core and comes as standard with EtherCAT and CANopen slave communications.

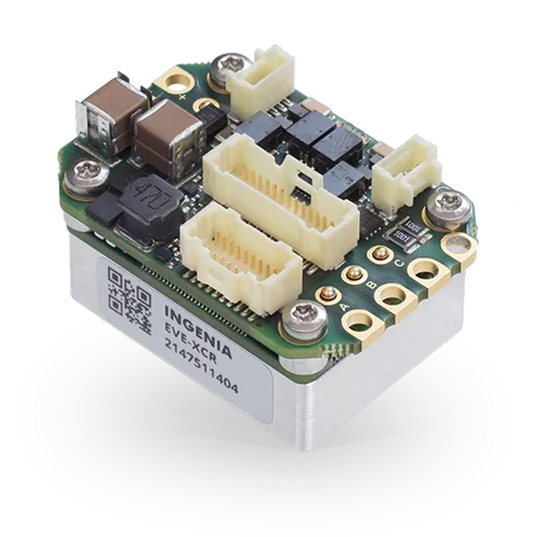

EVE-XCR is an ultra-compact, super smart, high-powered servo drive. Thanks to its small size and rugged design it can be mounted virtually anywhere: collaborative robot joints, wearable robots, unmanned ground or aerial vehicles as well as inside motors.
Product model and parameter list:

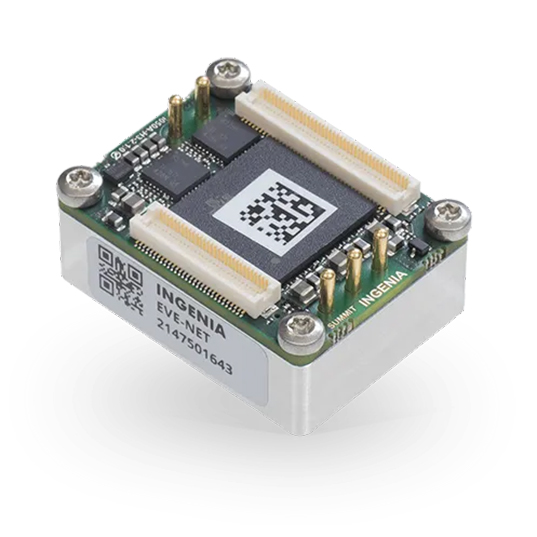

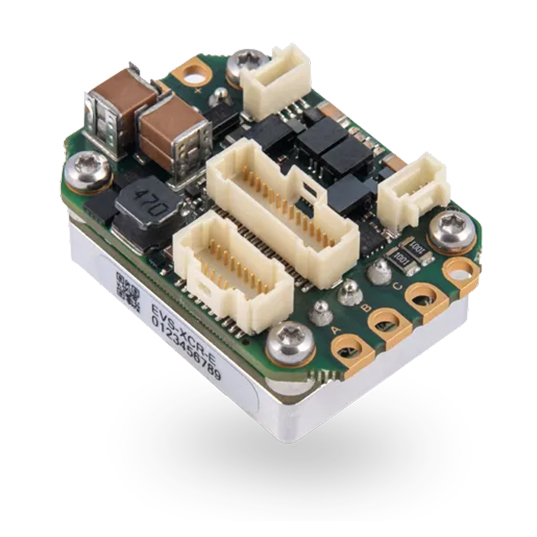

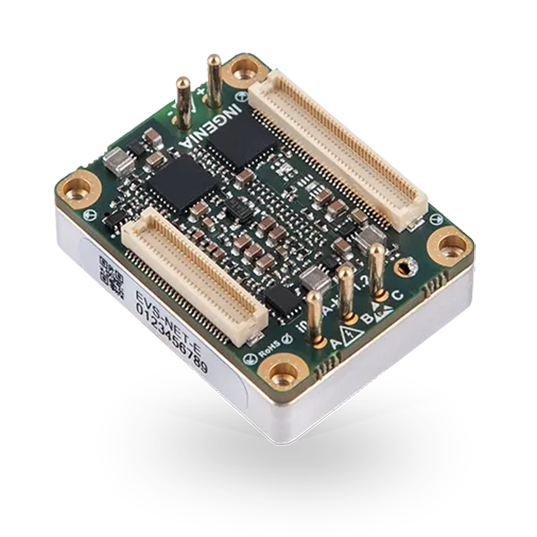

Specifications | EVE-COR | EVE-NET | EVE-S-NET | EVE-XCR | EVE-S-XCR |
Dimensions | 34.5 x 26 x 10.4 mm | 24.5 x 26 x 14.2 mm | 34.5 x 26 x10.3 mm | 42 x 29 x 19.4 mm | 42 x 29 x 23.2 mm |
Weight | 18 g | 24 g | 18 g | 31g | 38 g |
Supply Voltage | 8-80 Vdc | ||||
Continuous Current | 45 A | ||||
Power | 3000 W | ||||
Communications | SPI | CANopen/EtherCAT | |||
Feedbacks Types | Digital Halls, Digital Incremental Encoder, BiSS-C, Dual BiSS-C Daisy Chained, BiSS-C and SSI, SSI, Dual SSI | ||||
Motor Types | DC Brushed, Rotary Brushless | ||||
Motion Modes | Profile Position, Profile Speed, Profile Torque, Cyclic Sync Position, Cyclic Sync Velocity, Cyclic Sync Torque, Homing | ||||
