Ultra-Low Profile Servo Drive

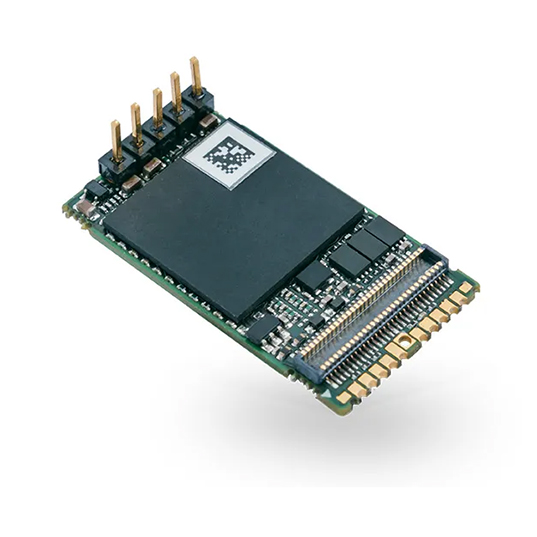

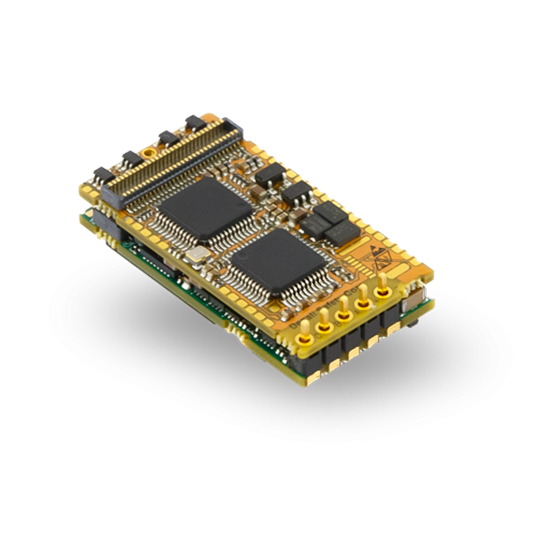

DEN-NET is an ultra-compact, high-power density servo drive. The pluggable design is optimal for a carrier board, with single or multi-axis integration. The DEN-NET drive is lightweight and has an extremely low profile, enabling ease of integration for multiple applications, such as: End-effector actuators, Surgical robot consoles, Grippers, Pipetting systems, Haptic feedback systems.

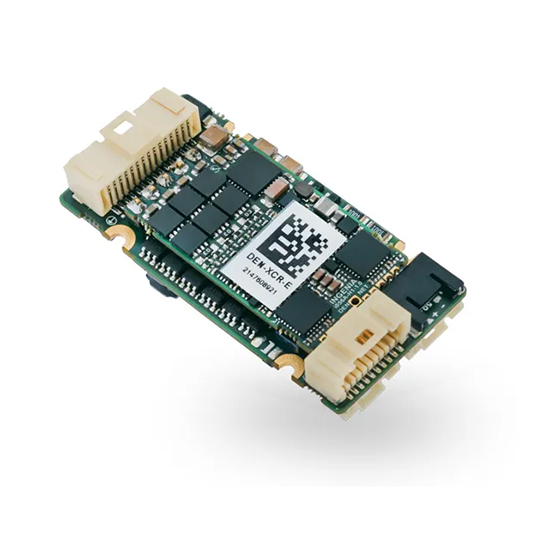

DEN-XCR is a miniature, ready-to-use, high power density servo drive. Optimized with an extremely low profile and lightweight, allowing for easy integration in surgical robot consoles, grippers, end-effector actuators, pipetting systems, and haptic feedback systems. DEN-XCR servo drive is designed with the most advanced transistor technology in the world, delivering the highest power density and efficiency.
Product model and parameter list:
Specifications | DEN-NET | DEN-XCR |
Dimensions | 33 x 17.6 x 6 mm | 49.8 x 23.2 x 14 mm |
Weight | 8 gr | 14 gr |
Supply Voltage | 5-60 Vdc | |
Continuous Current | 5 A | |
Power | 250 W | |
Communications | CANopen/EtherCAT | |
Feedbacks Types | Digital Halls, Quadrature Incremental Encoder, BiSS-C, Dual Biss-C, Dual BiSS-C Daisy Chained, BiSS-C Daisy Chain, BiSS-C and SSI, Dual SSI | |
Motor Types | DC Brushed, Rotary Brushless | |
Motion Modes | Profile Position, Profile Velocity, Cyclic Sync Position, Cyclic Sync Velocity, Cyclic Sync Current, Cyclic Sync Torque, Homing | |
