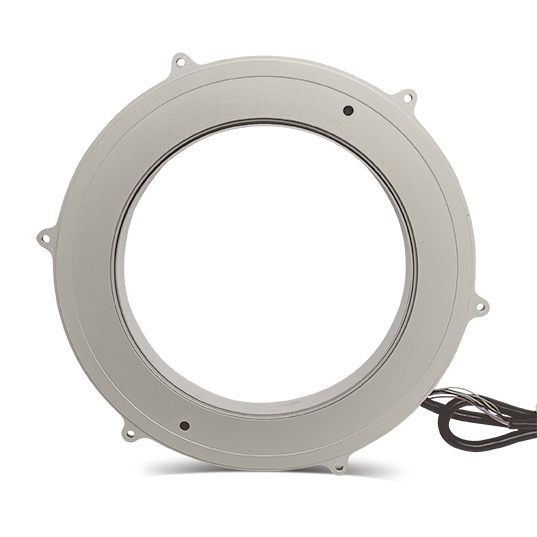

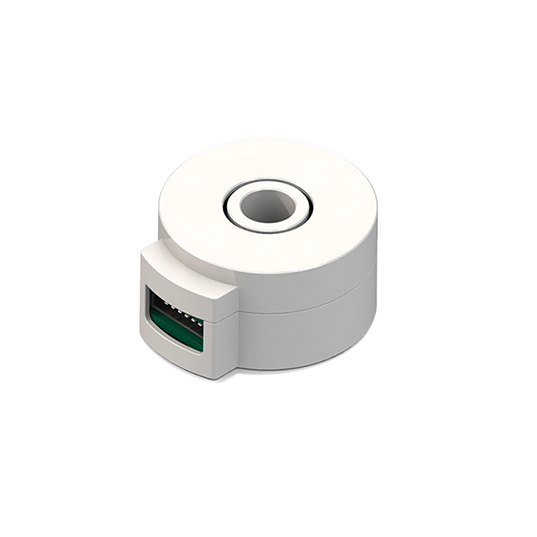

IAS & CAS | Sleeve Embedded Inductive Encoders

High Accuracy | Hollow Shaft | Low Profile | Non-contact | Industrial & Ruggedized

Brands：SENSNA Categories：Palki Inductive Encoders

True absolute position, no instrument motion is required at power up
Offering up to ≤36 arc-seconds accuracy and 20-bits resolution
No contact, Inductive technique, robust and easy to install
IAS - Designed for a broad range of industrial automation applications and motion control
CAS - Designed for a broad range of aerospace and defense applications
Multiple communication protocols and connections, providing customized extension options

Get a quote Customization

Details

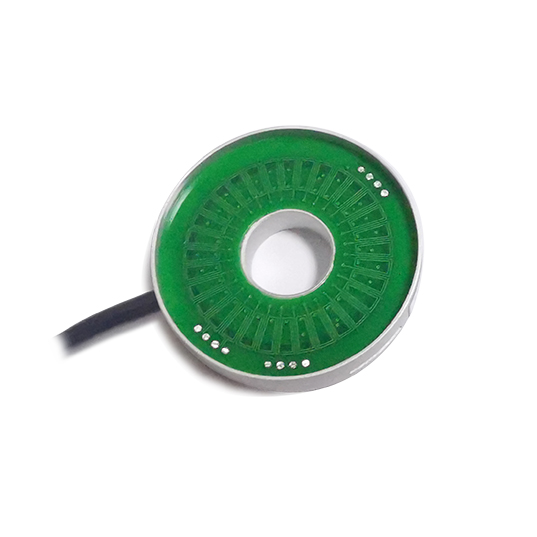

IAS & CAS | Sleeve Embedded Inductive Encoder

SENSNA absolute rotary encoder utilizes techniques of inductive, having hollow shaft, high precision, high reliability, and non-contact features. The ultra-high precision and high-end functions of the electric encoder makes it integrated with modern motion control applications, meeting the strict requirements.

SENSNA absolute rotary encoder offers a variety of diameters, models, communication interfaces, and connection options. All models are compatible with a wide range of controllers and drives, covering all fields of precision motion control from aerospace and defense, harsh environment, to industrial, medical and automotive applications.

IAS- Sleeve Embedded Inductive Encoder for Industry

Product	OD/ID/Height （mm）	Weight （g）	Resolution （bit）	Accuracy	Max. operational speed （rpm）
IAS-16	16/4/9	5	15-17	0.05°	4000
IAS-25	25/6/8	10	15-17	0.025°	4000
IAS-37	37/10/8	15	16-18	0.02°	4000
IAS-40	40/10/10	25	16-18	0.02°	4000
IAS-58	58/20/10	40	17-19	0.015°	4000
IAS-70	70/30/10	55	17-19	0.015°	3000

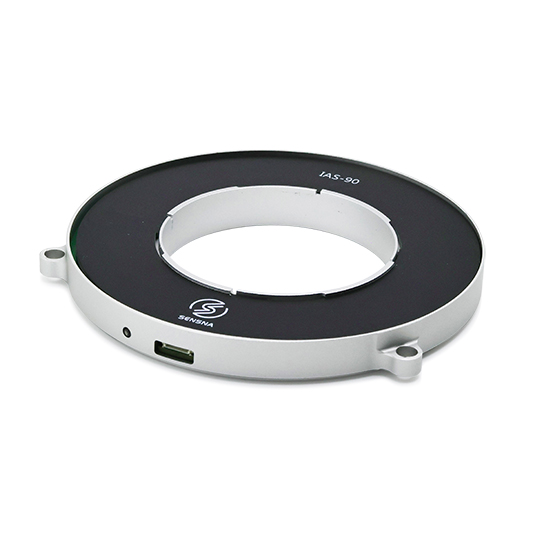

IAS-90	90/50/10	70	18-20	0.01°	1500
IAS-130	130/90/10	120	18-20	0.01°	1500
IAS-170	170/120/11.5	260	18-20	0.01°	1500

Supply voltage: 5-30V

Electrical interface: RS-422 Shielded cable

Communication: SSi、BiSS-C、UART

Operating temperature: -20ºC - +60ºC

Protection: IP 67

CAS- Sleeve Embedded Inductive Encoder for Harsh Environment

Product	OD/ID/Height （mm）	Weight （g）	Resolution （bit）	Accuracy	Max. operational speed （rpm）
CAS-16	16/4/9	5	15-17	0.05°	4000
CAS-25	25/6/8	10	15-17	0.025°	4000
CAS-37	37/10/8	15	16-18	0.02°	4000
CAS-40	40/10/10	25	16-18	0.02°	4000

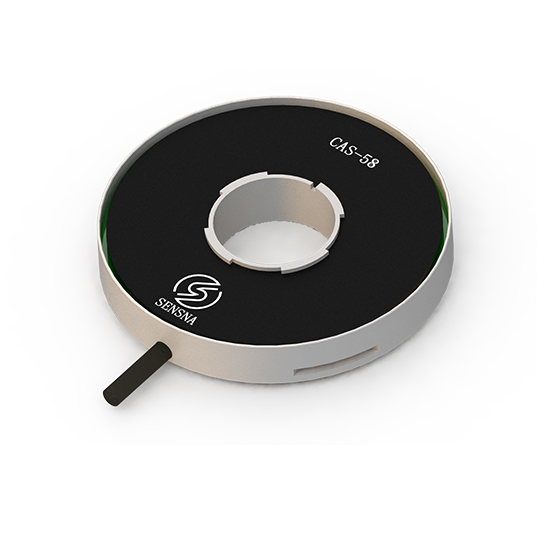

CAS-58	58/20/10	40	17-19	0.01°	4000
CAS-70	70/30/10	55	17-19	0.01°	3000
CAS-90	90/50/10	70	18-20	0.01°	1500
CAS-130	130/90/10	120	18-20	0.01°	1500
CAS-170	170/120/11.5	260	18-20	0.01°	1500
