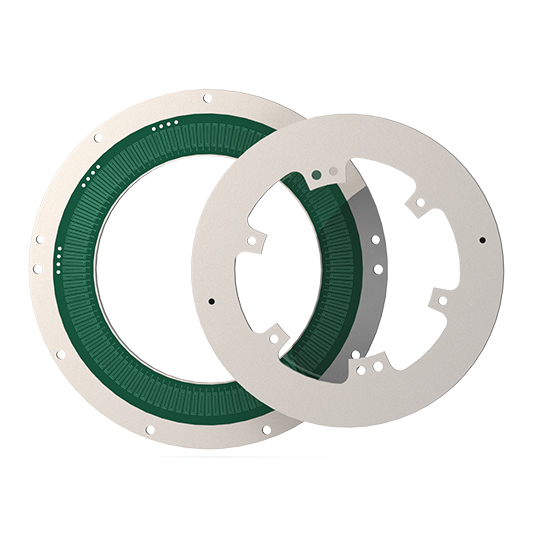

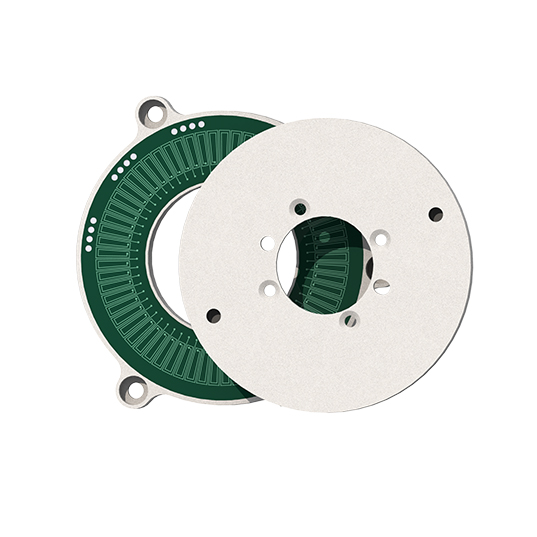

IAF & CAF | Low Profile Alloy Two-plate Inductive Encoder
SENSNA absolute rotary encoder utilizes techniques of inductive, having hollow shaft, high precision, high reliability, and non-contact features. The ultra-high precision and high-end functions of the electric encoder makes it integrated with modern motion control applications, meeting the strict requirements.
SENSNA absolute rotary encoder offers a variety of diameters, models, communication interfaces, and connection options. All models are compatible with a wide range of controllers and drives, covering all fields of precision motion control from aerospace and defense, harsh environment, to industrial, medical and automotive applications.
IAF- Low Profile Alloy Two-plate Inductive Encoder for Industry
Product | OD/ID/Height （mm） | Weight （g） | Resolution （bit） | Accuracy | Max. operational speed （rpm） |
IAF-60 | 60/30/10.1 | 45 | 17-19 | 0.015° | 3000 |
IAF-100 | 100/57/11.5 | 130 | 17-19 | 0.01° | 1500 |
IAF-150 | 150/110/13.6 | 300 | 17-19 | 0.01° | 1500 |
Supply voltage: 5-30V
Electrical interface: RS-422 Shielded cable
Communication: SSi、BiSS-C、UART
Operating temperature: -20ºC - +60ºC
Protection: IP 67
CAF- Low Profile Alloy Two-plate Inductive Encoder for Harsh Environment
Product | OD/ID/Height （mm） | Weight （g） | Resolution （bit） | Accuracy | Max. operational speed （rpm） |
CAF-60 | 60/30/10.1 | 45 | 17-19 | 0.015° | 3000 |
CAF-100 | 100/57/11.5 | 130 | 17-19 | 0.01° | 1500 |
CAF-150 | 150/110/13.6 | 300 | 17-19 | 0.01° | 1500 |
Supply voltage: 5-30V
Electrical interface: RS-422 Shielded cable
Communication: SSi、BiSS-C、UART
Operating temperature: -40ºC - +85ºC
Storage temperature: -50℃ - +100℃
Protection: IP 67
