IAC & CAC | Alloy Two-plate Inductive Encoders

High Accuracy | Hollow Shaft | Low Profile | Non-contact | Industrial & Ruggedized

Brands：SENSNA Categories：Palki Inductive Encoders

True absolute position, no instrument motion is required at power up
Offering up to ≤36 arc-seconds accuracy and 20-bits resolution
A wide range of diameter options to meet your specification needs
No contact, Inductive technique, robust and easy to install
IAC - Designed for a broad range of industrial automation applications and motion control
CAC - Designed for a broad range of aerospace and defense applications
Multiple communication protocols and connections, providing customized extension options

Get a quote Customization

Details

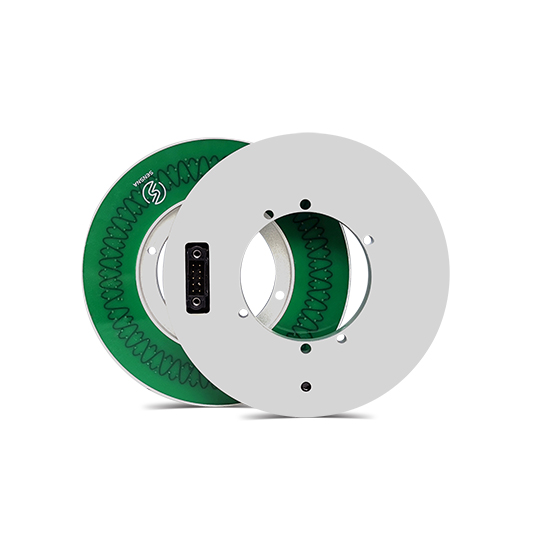

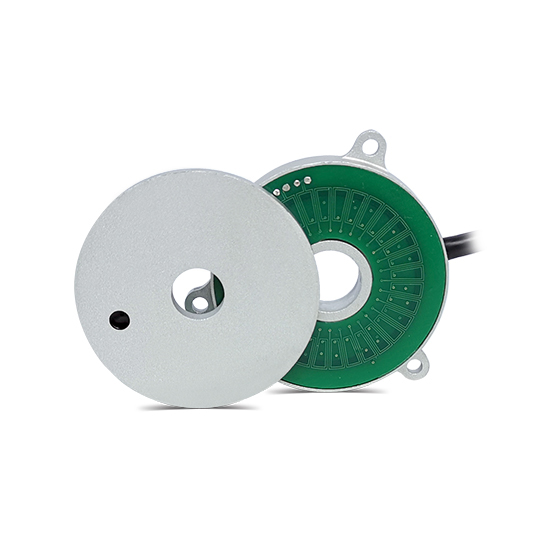

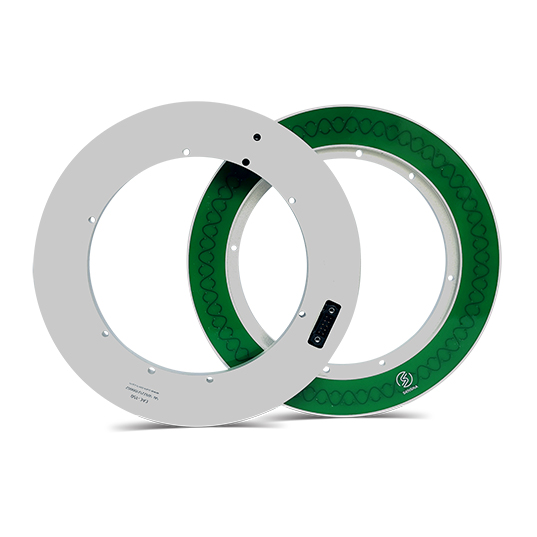

IAC & CAC | Alloy Two-plate Inductive Encoder

SENSNA absolute rotary encoder utilizes techniques of inductive, having hollow shaft, high precision, high reliability, and non-contact features. The ultra-high precision and high-end functions of the electric encoder makes it integrated with modern motion control applications, meeting the strict requirements.

SENSNA absolute rotary encoder offers a variety of diameters, models, communication interfaces, and connection options. All models are compatible with a wide range of controllers and drives, covering all fields of precision motion control from aerospace and defense, harsh environment, to industrial, medical and automotive applications.

IAC- Alloy Two-plate Inductive Encoder for Industry

Product	OD/ID/Height （mm）	Weight （g）	Resolution （bit）	Accuracy	Max. operational speed （rpm）
IAC-37	37/8/11.25	20/6	17-19	0.025°	4000
IAC-58	58/12.7/16.4	80/45	17-19	0.015°	3000
IAC-75	75/25/16.4	82/50	17-19	0.015°	3000
IAC-90	90/40/16.4	105/60	17-19	0.01°	1500
IAC-100	100/50/16.4	115/70	17-19	0.01°	1500
IAC-125	125/75/16.4	140/90	17-19	0.01°	1500
IAC-150	150/100/16.4	170/110	18-20	0.01°	1500
IAC-175	175/125/16.4	220/140	18-20	0.01°	1500
IAC-200	200/150/16.4	260/160	18-20	0.01°	1500

Supply voltage: 5-30V

Electrical interface: RS-422 Shielded cable

Communication: SSi、BiSS-C、UART

Operating temperature: -20ºC - +60ºC

Protection: IP 67

CAC- Alloy Two-plate Inductive Encoder for Harsh Environment

Product	OD/ID/Height （mm）	Weight （g）	Resolution （bit）	Accuracy	Max. operational speed （rpm）
CAC-37	37/8/11.25	20/6	17-19	0.025°	4000
CAC-58	58/12.7/16.4	80/45	17-19	0.015°	3000
CAC-75	75/25/16.4	82/50	17-19	0.015°	3000
CAC-90	90/40/16.4	105/60	17-19	0.01°	1500
CAC-100	100/50/16.4	115/70	17-19	0.01°	1500
CAC-125	125/75/16.4	140/90	17-19	0.01°	1500
CAC-150	150/100/16.4	170/110	18-20	0.01°	1500
CAC-175	175/125/16.4	220/140	18-20	0.01°	1500
CAC-200	200/150/16.4	260/160	18-20	0.01°	1500
