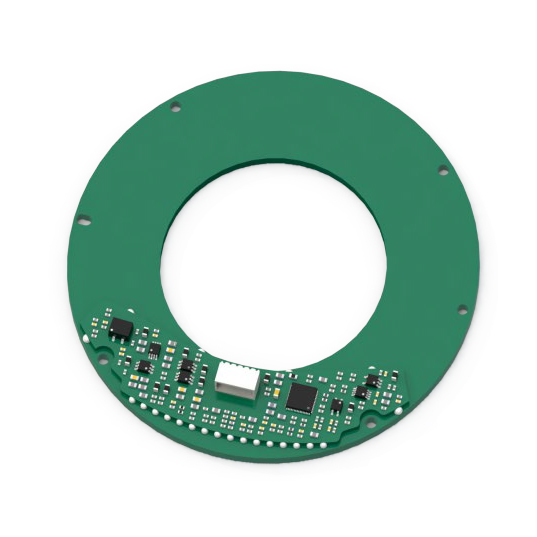

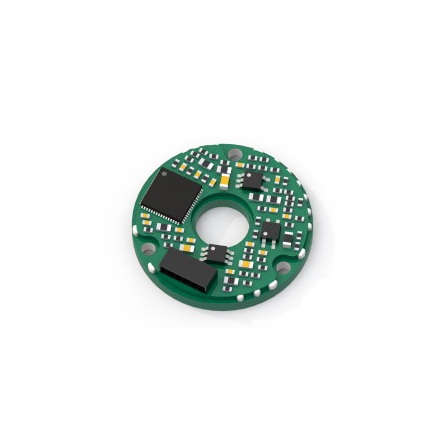

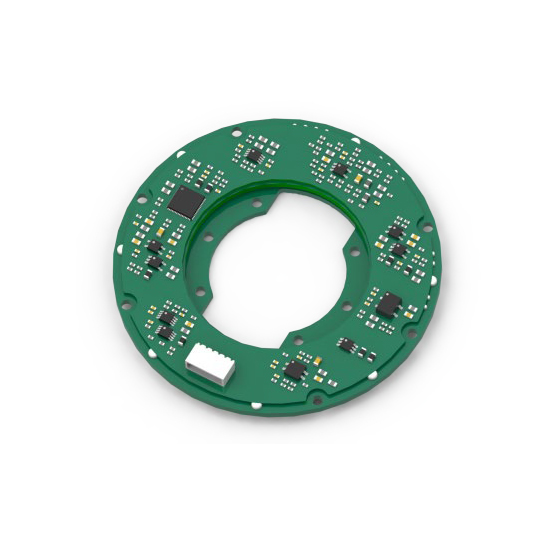

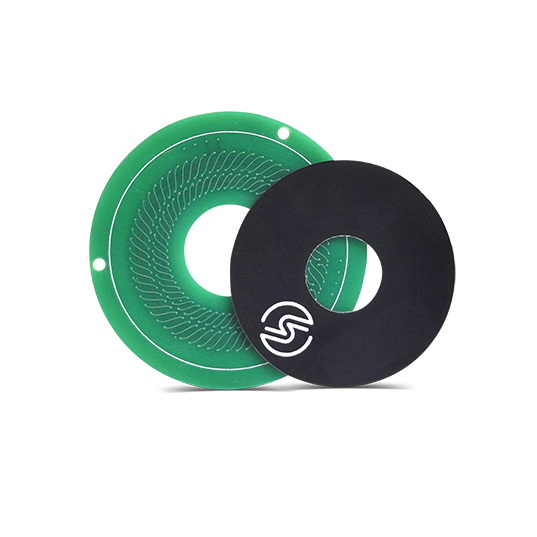

IAP- Unencapsulated Kit Inductive Encoder
SENSNA absolute rotary encoder utilizes techniques of inductive, having hollow shaft, high precision, high reliability, and non-contact features. The ultra-high precision and high-end functions of the electric encoder makes it integrated with modern motion control applications, meeting the strict requirements.
SENSNA absolute rotary encoder offers a variety of diameters, models, communication interfaces, and connection options. All models are compatible with a wide range of controllers and drives, covering all fields of precision motion control from aerospace and defense, harsh environment, to industrial, medical and automotive applications.
Product | OD/ID/Height （mm） | Weight （g） | Resolution （bit） | Accuracy | Max. operational speed （rpm） |
IAP-20 | 20/4/6.5 | 4 | 15-17 | 0.05° | 4000 |
IAP-40 | 40/10/8 | 10 | 17-19 | 0.015° | 6000 |
IAP-60 | 60/25/8 | 18 | 18-20 | 0.008° | 8000 |
IAP-80 | 80/35/8 | 30 | 18-20 | 0.008° | 8000 |
IAP-100 | 100/48/8 | 40 | 19-21 | 0.006° | 6000 |
IAP-140 | 140/90/9 | 75 | 19-21 | 0.006° | 6000 |
IAP-180 | 180/120/9 | 120 | 20-22 | 0.003° | 4000 |
IAP-247 | 247/172/9 | 180 | 20-22 | 0.003° | 4000 |
Supply voltage: 5-30V
Electrical interface: RS-422 Shielded cable
Communication: SSi、BiSS-C、UART
Operating temperature: -20ºC - +60ºC
Protection: IP 40
