CAB | Alloy Encapsulated Shaft Absolute Encoders

High Accuracy, Absolute encoder with integrated alloy structure, with solid or hollow shaft

Brands：SENSNA Categories：Palki Inductive Encoders

Absolute encoder with integrated alloy structure, with solid or hollow shaft
True absolute position, using inductive or magnetic technique
Robust and easy to install, no precision installation requirements
Not affected by condensation or dust, resistant to impact and vibration, and suitable for a wide working temperature range
Customized expansion options are provided for dimensions, shaft, communication protocols, and connections

Get a quote Customization

Details

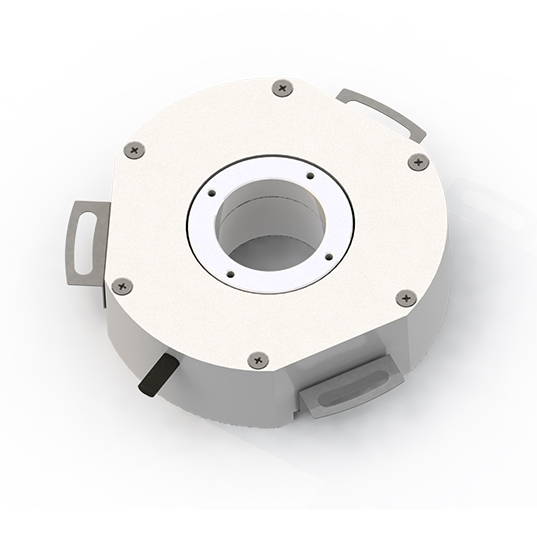

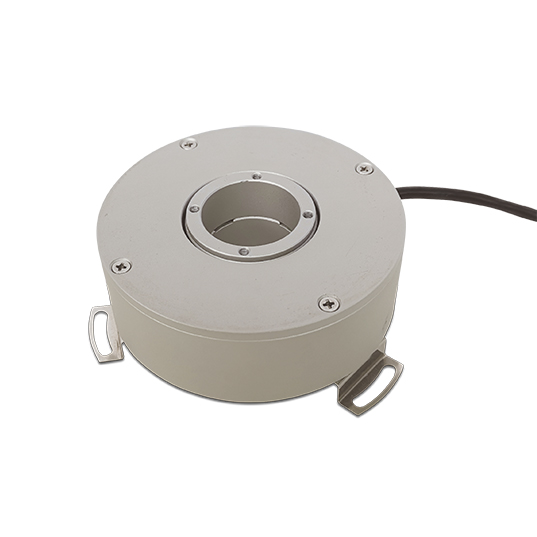

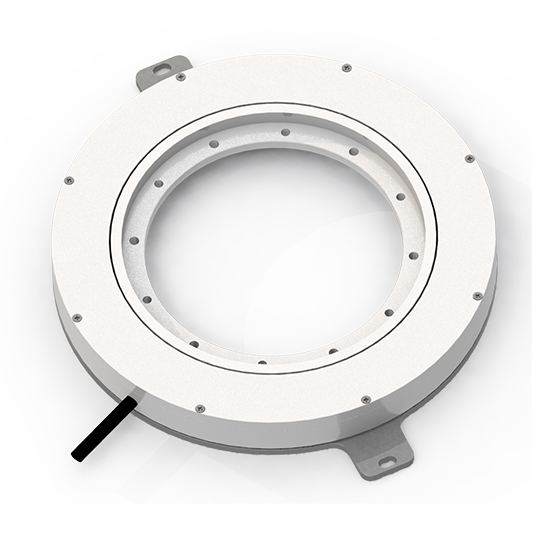

CAB- Alloy Encapsulated Shaft Absolute Encoder

SENSNA absolute rotary encoder utilizes techniques of inductive, having hollow shaft, high precision, high reliability, and non-contact features. The ultra-high precision and high-end functions of the electric encoder makes it integrated with modern motion control applications, meeting the strict requirements.

SENSNA absolute rotary encoder offers a variety of diameters, models, communication interfaces, and connection options. All models are compatible with a wide range of controllers and drives, covering all fields of precision motion control from aerospace and defense, harsh environment, to industrial, medical and automotive applications.

Product	OD/ID/Height （mm）	Weight （g）	Resolution （bit）	Accuracy	Max. operational speed （rpm）
CAB-65	65/28/16.2	160	17-19	0.015°	3000
CAB-70	70/22/20	190	17-19	0.015°	3000
CAB-85	85/29/26	220	17-19	0.015°	3000
CAB-90	90/36/27	295	17-19	0.015°	3000
CAB-112	112/50/28	530	17-19	0.01°	1500
CAB-123	123/71.5/16	350	17-19	0.01°	1500
